Power energy harness
Power energy harness is are specifically designed for smart grids, energy storage systems, and power distribution systems. Developed in collaboration with China's State Grid, Southern Power Grid, and leading global energy companies, they ensure high reliability, safety, and efficiency in power transmission and data acquisition. We offer one-stop services ranging from connector selection and harness design to custom mold manufacturing.
Applications
Customizd Parameters
Tailor your power harness solutions with our comprehensive customization options
1 Cable Specifications
Material Selection
PVC Economical TPE Flexible Silicone High Temp Teflon
Wire Gauge
Standard range: 4AWG - 500MCM Custom sizes available
Color Coding
Standard color options Pantone color matching
Conductor Structure
9-core / 12-core configurations Custom cross-sections
2 Connector System
Plating Options
Nickel plating 24H salt spray Gold plating 48H-72H salt spray
Performance
Contact resistance: ≤0.5mΩ Mating cycles: ≥5000
3 Shell Configuration
PIN Configuration
2-24 PIN options
Housing
Multiple color options Space-saving designs
4 Technical Specifications
Mechanical Properties
Bend radius: ≥6×OD Terminal pull force: ≥150N/mm²
Electrical Properties
Withstand voltage: 2000V AC/5min Operating temp: -40℃ ~ +125℃
Protection Rating
Waterproof IP67 Dustproof
5 Compliance
Fully compliant with RoHS 2.0, REACH, halogen-free requirements and other environmental directives
6 Typical Applications
Smart Metering (DL/T 645-2007) Switchgear ESS (Energy Storage) Smart Grid PV/Wind Storage Distribution Networks
Products
Power energy harness

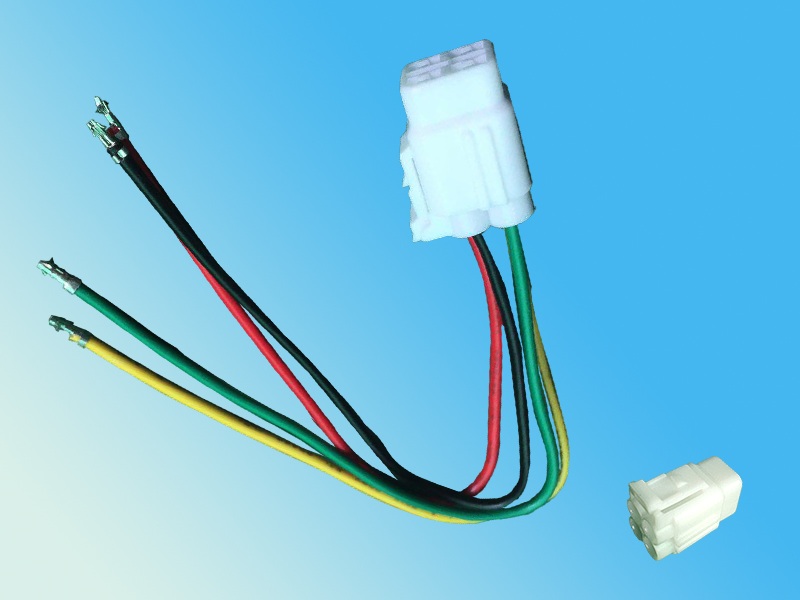

EL 4P(M) Metering Cable
EL 4P(F ) Metering Cable
DJ 4P(M ) Metering Cable
DJ 4P(F ) Metering Cable

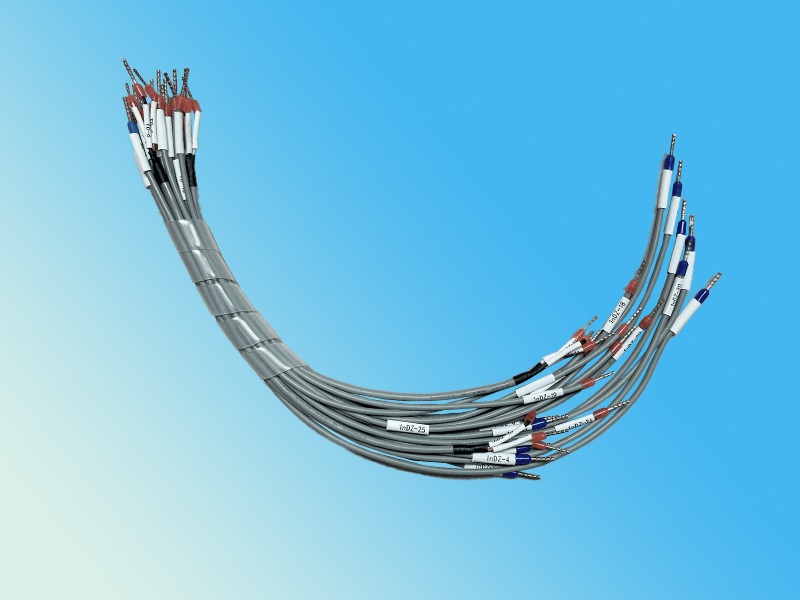

TTU Comm Harness (Non-Connectorized)
TTU Comm Harness

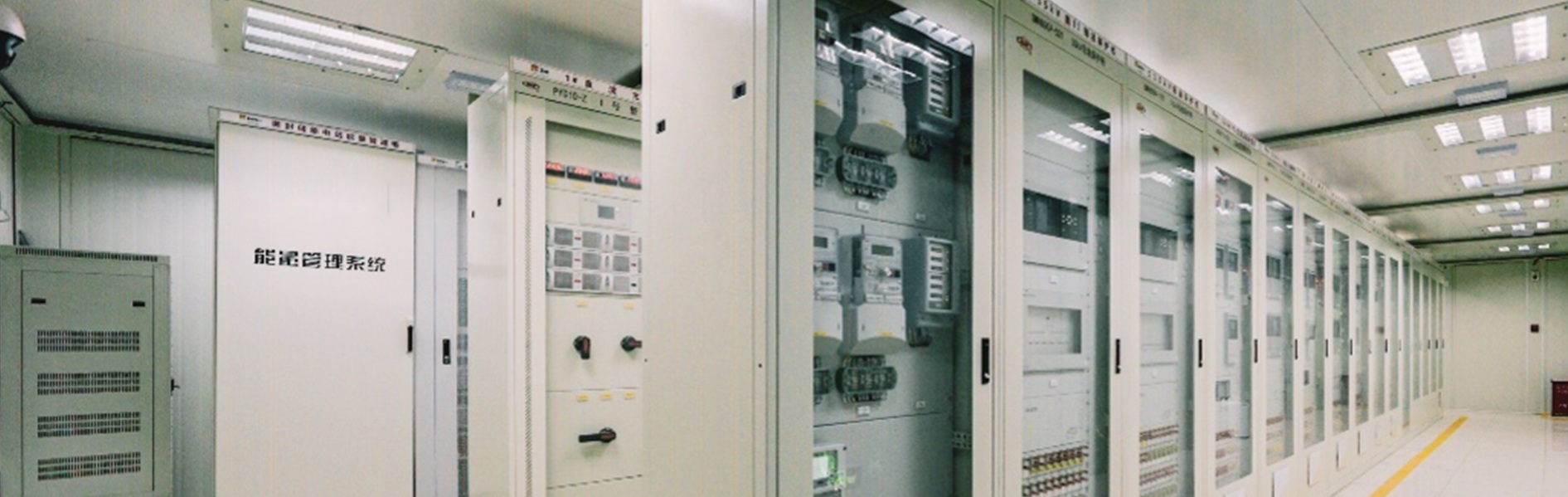

Power Distribution Cabinet Cable

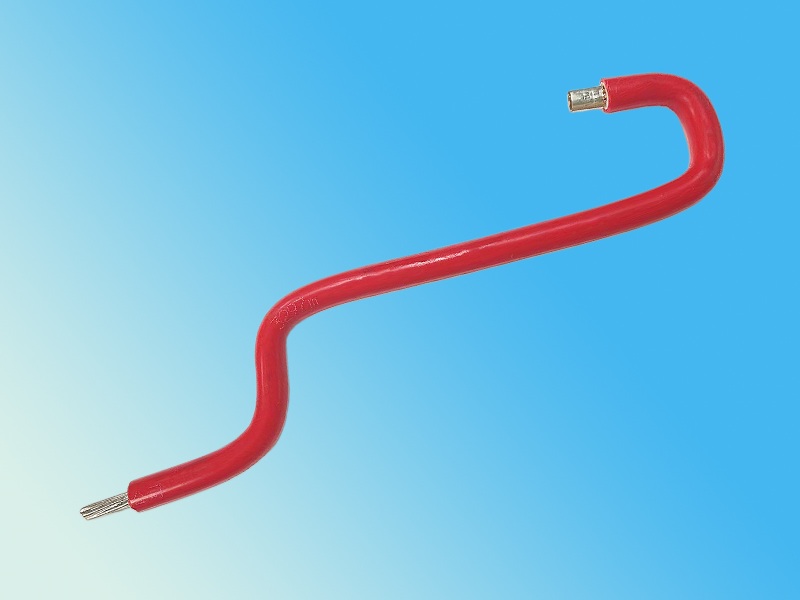

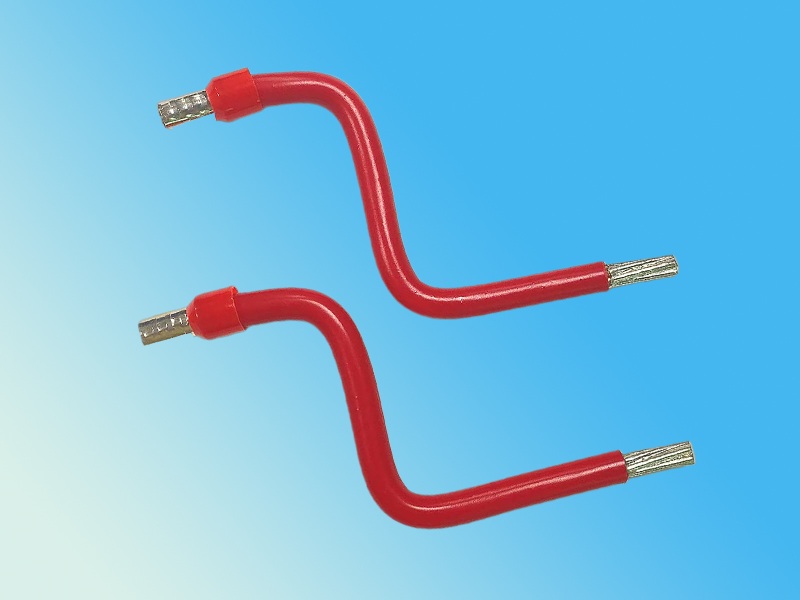

Bent Square Wire 01
Bent Sauare Wire 02
Bent Sauare Wire 03
Bent Sauare Wire 04
Bent Sauare Wire 05
Bent Sauare Wire 06

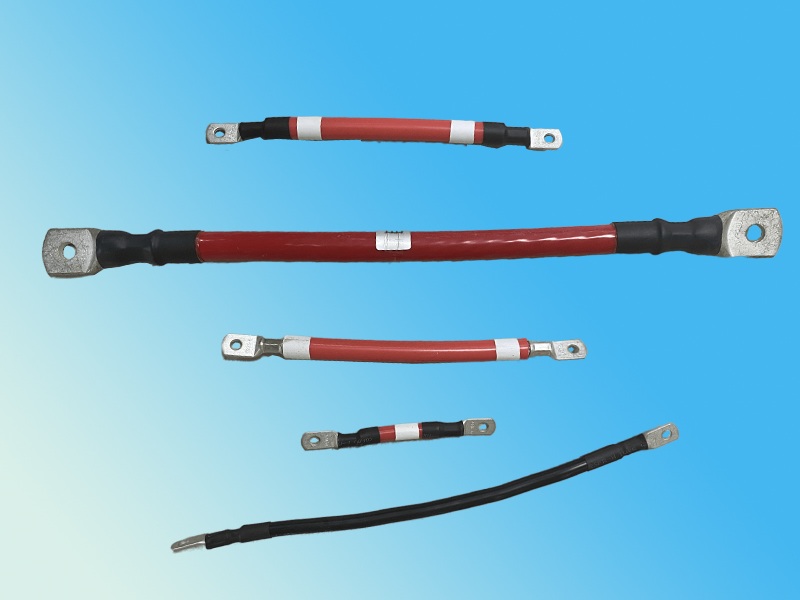

Energy Storage Cable

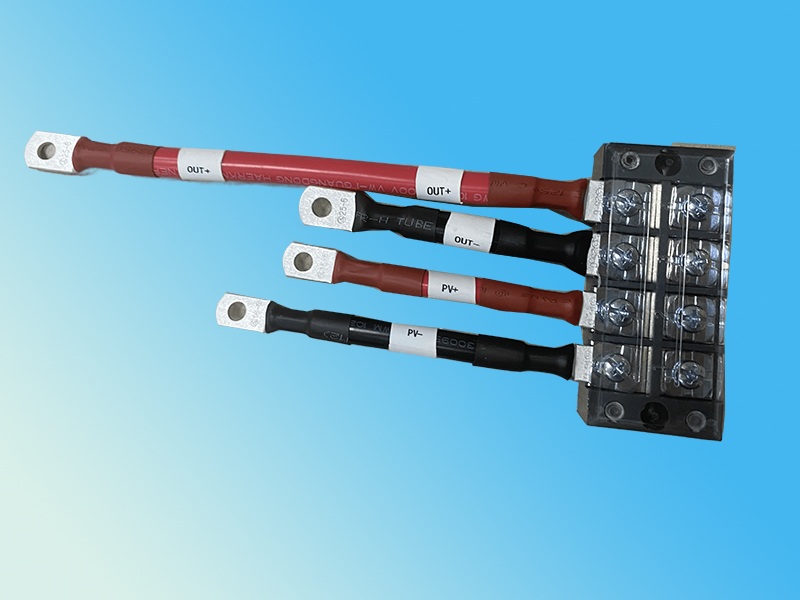

Photovoltaic Energy Storage Box Power Cable

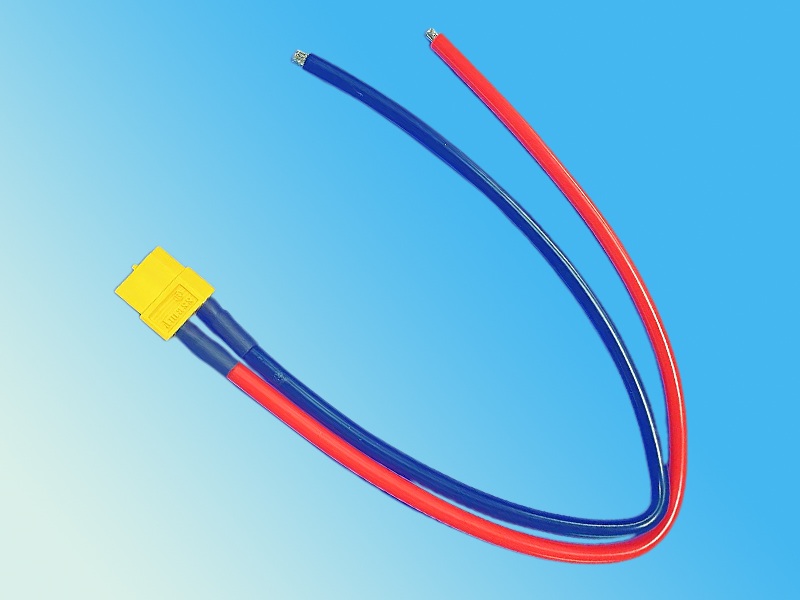

XT60 Energy Storage Connection Cable
Lockable Energy Storage Terminal Harness

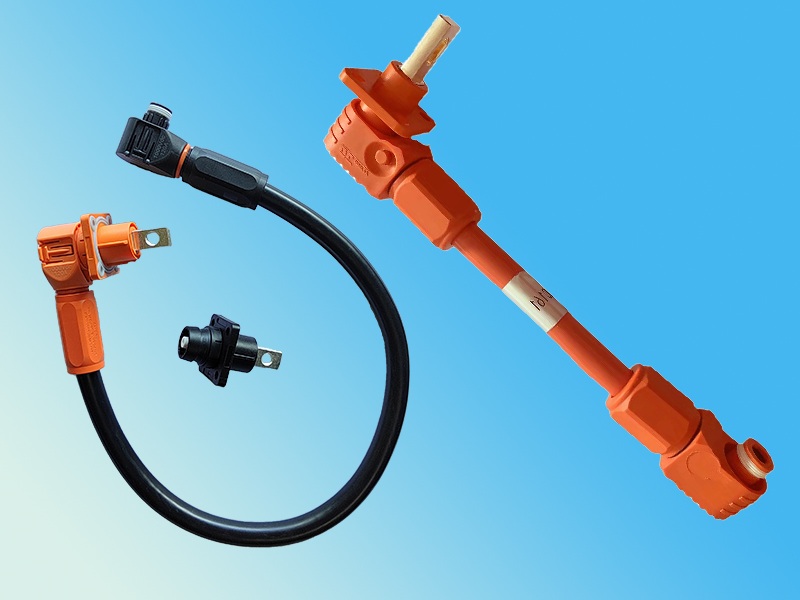

High-Voltage Energy Storage Cabinet Connection Cable
SC Copper Terminal
